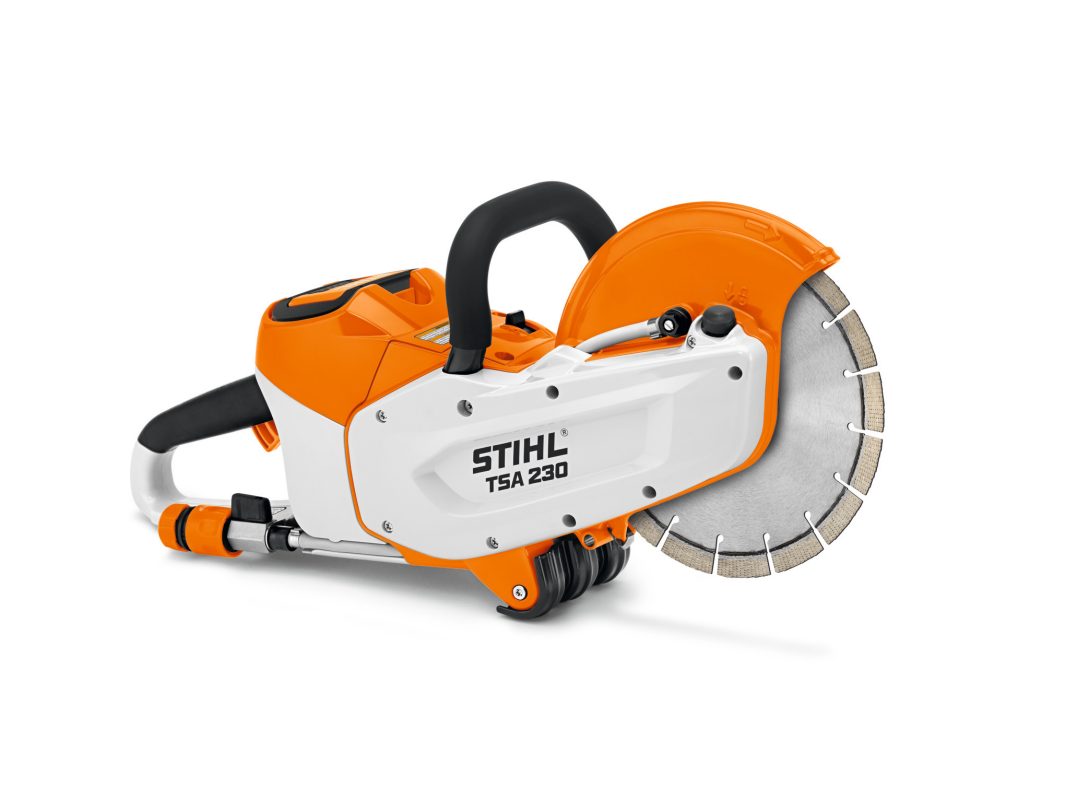

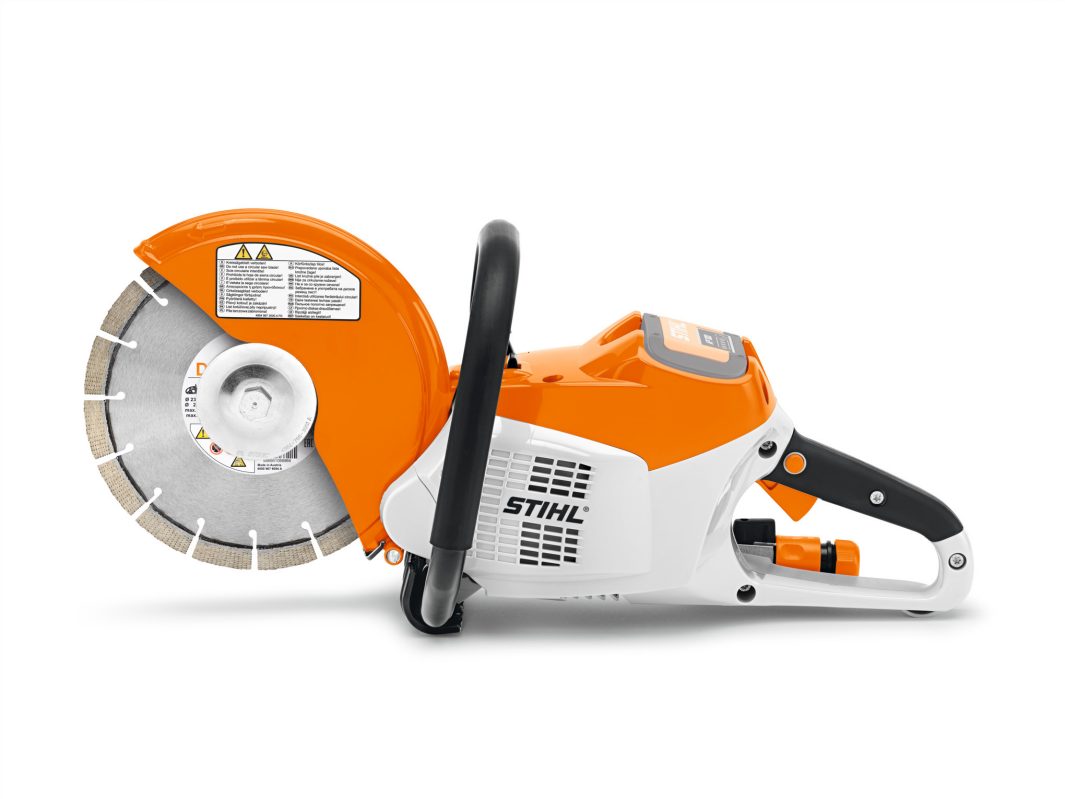

CORDLESS POWER CUTTER TSA 230: HANDY DEVICE FOR VERSATILE USE

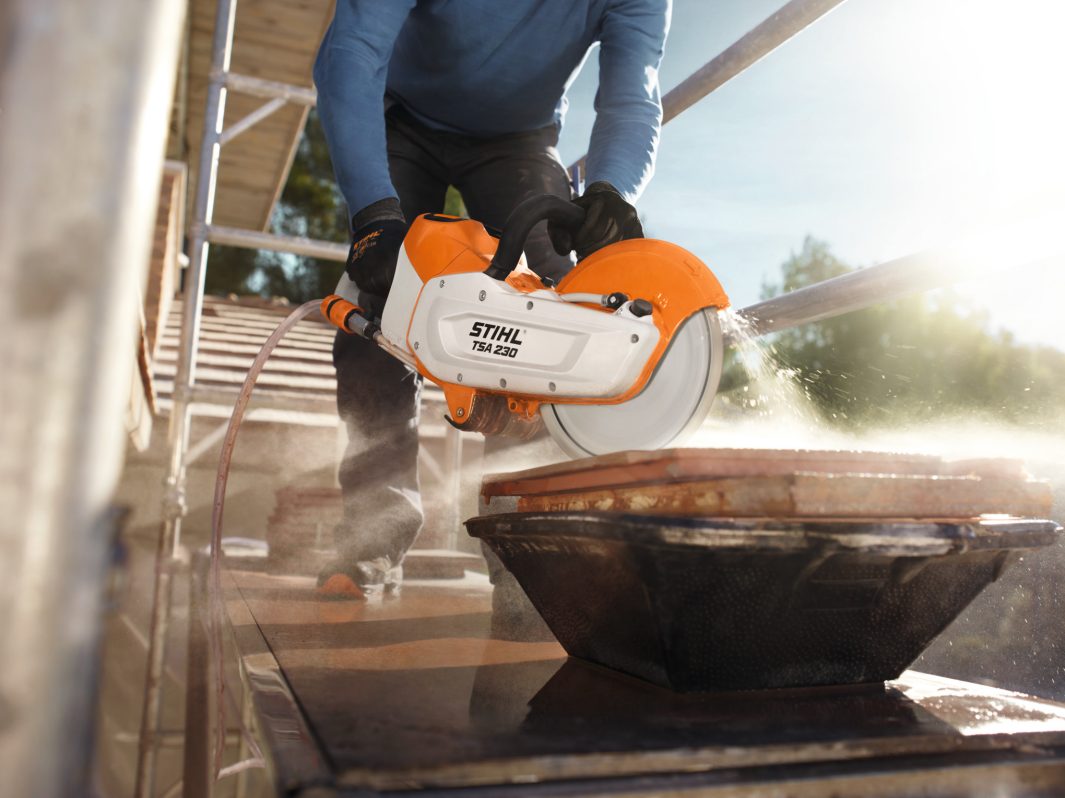

The handy STIHL TSA 230 cordless power cutter is ideal for builders, roofers, gardeners and landscapers as well as for a wide range of applications in civil engineering . This includes cutting stone, pipes or iron gratings , but also dismantling bricks, bricks or structural steel mesh.
With the 230 mm cutting disc of the Motorflex STIHL TSA 230, cutting depths of up to 70 mm are possible. The ergonomic handle of the STIHL TSA 230 allows you to have a secure hold and precise guidance when cutting. The brushless EC motor works almost wear-free . Its electronic control always optimally adapts power and speed to the material to be separated.
Thanks to its emission-free operation, the TSA 230 cordless power cutter can also be used inside buildings, for example in halls. It is particularly important there that any dust created during separation is bound immediately . The integrated water connection ensures that the cutting disc is moistened. Alternatively, you can also reduce dust pollution using the optional STIHL depth stop . Here, the resulting dust is led via a suction nozzle directly into a connected wet and dry vacuum cleaner, such as the STIHL SE 133 ME.
Changing the cutting disc is very easy: all you have to do is press the spindle lock , loosen the retaining screw with a wrench and then tighten it again. Experience the diverse uses of the STIHL TSA 230 cordless power cutter in our video.
In our overview of battery life and charging times you can see how long you can work with your STIHL TSA 230 cordless power cutter and how long the battery used takes to charge.
All cordless tools within the STIHL AP system are designed for professional users and for daily use, even under adverse weather conditions. Therefore, they have tested splash water protection. The effectiveness is proven through demanding internal tests. The splash water test is based, among other things, on the IPX4 standard.
- Single device without battery and without charger
- Powerful cordless power cutter
- For the building trade, gardening and landscaping as well as civil engineering
- Energy-efficient, low-maintenance motor
- Convenient changing of the cutting discs
- For 230 mm cutting discs
| Nominal Voltage | 36 V |
| Battery Life with AR 900 | up to 75 mins |
| Weight | 3.9 kg |
| Sound Power Level | 114 dB(A) |
| Vibration Value left/right | 3.5/3.5 m/s2 |

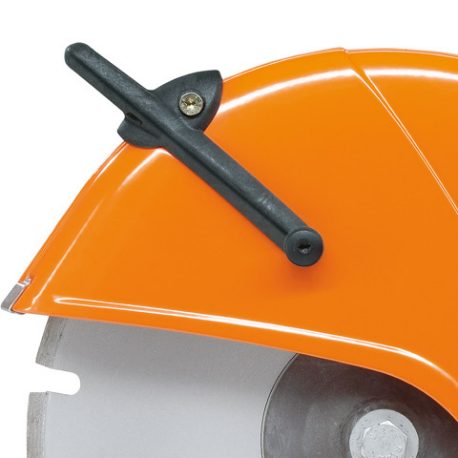

Magnesium Protection
Light and stable. The cutting disc protection ensures that you are not hit by flying cuttings or the cooling water from the cutting disc. The diecast magnesium protection is particularly light and robust

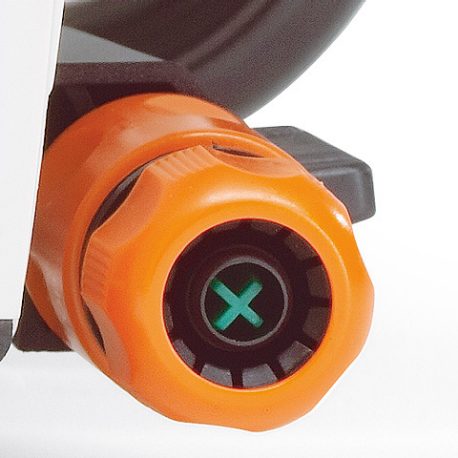

Water Connection
FOR DUST BINDING AND COOLING. When working with your device, a constant supply of water is provided to rinse the cutting disc. It serves to bind dust and cool the cut. With the water connection directly on the device, this flushing is easy and permanently secured.

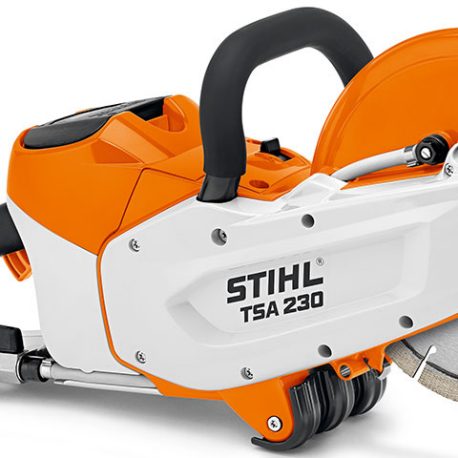

EC Motor
LOW MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor allows you to work energy-efficiently. This engine also has a long service life.

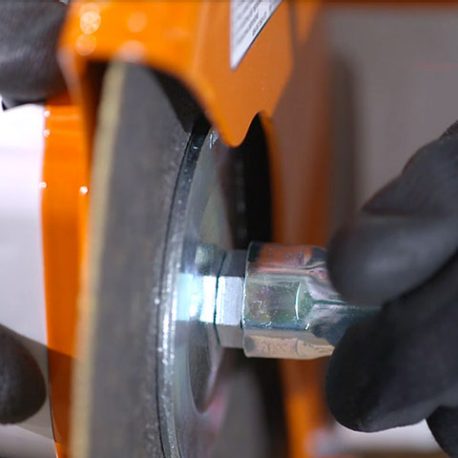

Spindle Lock
FOR EASY CHANGE OF CUTTING BLADES. With the spindle lock you can change the cutting disc of your cut-off grinder quickly and easily.

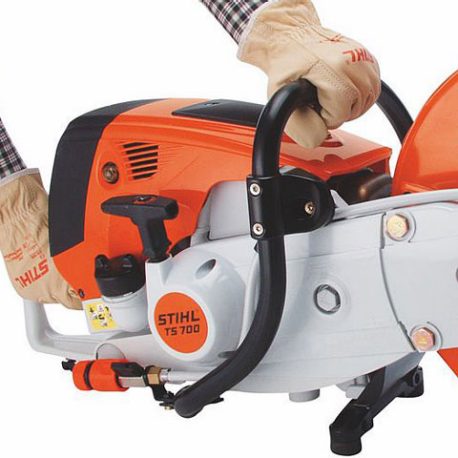

Ergonomic Handle
FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm groip on your device even on the hardest rocks and carry out the cut precisely. The curved handle offers you an optimized grip position and maximum comfort when working.
